6m Beveling Laser Tube Cutting Machine GT Series
This machine, with double chucks, can bevel various tubes within ±45°, facilitating seamless welding. Both conventional and special-shaped tubes are easily cut.
6000 [mm] Max length of tube
360 [mm] Max size of tube
700 [kg] Max weight of tube
If you have more questions to ask us and get best quote, please contact us now directly via WhatsApp or Email:
Technical Parameters
Model | SF6024GT | SF6035GT |
Laser Power (kW) | 3-6 | 3-6 |
Max Length of Tube (mm) | 6000 | 6000 |
Scope of Tube Size (mm) | Φ50~230 □50*50~230*230 | Φ50~360 □50*50~360*360 |
Max Weight of Tube (kg) | 260 | 700 |
X/Y-axis Positioning Accuracy (mm) | ±0.05 | ±0.05 |
X/Y-axis Repositioning Accuracy (mm) | ±0.03 | ±0.03 |
Max No-load Speed (m/min) | 75 | 60 |
Max Rotating Speed of Chucks (r/min) | 100 | 60 |
Overall Dimensions (L*W*H, mm) | 10200*2280*2530 | 10200*2280*2530 |
Power Supply | Three-phase 380V, 50Hz/60Hz (custom-made) | |
Automation
Optional Benefits

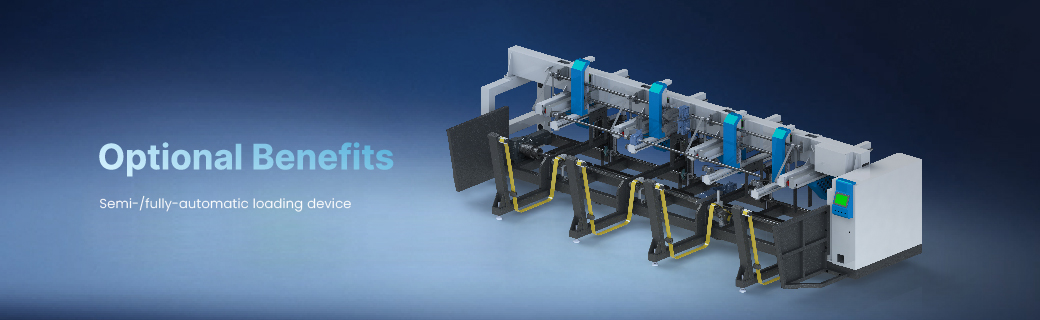

1. Semi-/fully-automatic loading device
* Load 6000mm long tube easily, and also deal with round, square, rectangular tube, as well as angle, channel steel and I beam.
What is laser cutter and how does it work?
A laser cutter uses laser as heat source and can be classified as sheet cutting and tube cutting. This includes sheet laser cutter, tube laser cutter and sheet & tube combo, making it one of the most advanced metal processing equipment available today.
The laser cutter utilizes the high-density laser beam to convert laser energy into thermal energy, causing localized heating, melting or even vaporization of materials. The melted or vaporized material is then blown away by using gas flow or other methods to achieve cutting.
The power of a fiber laser directly impacts its cutting capabilities. Fiber lasers with different power levels are suitable for various material thicknesses and types. The following article provides an overview of the cutting capabilities for the main power ranges: Cutting Capacity and Speed of 1.5kW-80kW Fiber Lasers
