Ultra-large Beveling Laser Metal Cutter TX Series
This large-sized machine can enable both straight cut and beveling. Its modular body may be tailored in terms of length and width, in order to cut ultra-long (≥6000mm) and super-heavy plate. Besides, its standard-compliant beveling contributes to making later welding firm enough.
80 [m/min] Max no-load speed
7000-47000 [kg] Load of platform (extensible)
If you have more questions to ask us and get best quote, please contact us now directly via WhatsApp or Email:
Technical Parameters
| Main Parameters | Model | |||||
| SF6030TX | SF8040TX | SF12030TX | SF14040TX | SF24040TX | SF30040TX | |
| Laser Power (kW) | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 |
| Working Area (L*W, mm) | 6000*3000 | 8000*4000 | 12000*3000 | 14000*4000 | 24000*4000 | 30000*4000 |
| X/Y-axis Positioning Accuracy (mm) | ±0.1/10000 | ±0.1/10000 | ±0.1/10000 | ±0.1/10000 | ±0.1/10000 | ±0.1/10000 |
| X/Y-axis Repositioning Accuracy (mm) | ±0.05 | ±0.05 | ±0.05 | ±0.05 | ±0.05 | ±0.05 |
| Max No-load Speed (m/min) | 80 | 80 | 80 | 80 | 80 | 80 |
| Max Load of Platform (kg) | 7000 | 12500 | 14000 | 21900 | 37500 | 47000 |
| Overall Dimensions (L*W*H, mm) | 8461*4609*1975 | 10784*5609*1975 | 15449*4609*1975 | 17940*5609*1975 | 29861*5609*1975 | 36956*5609*1975 |
| Power Supply | Three-phase 380V, 50Hz/60Hz (custom-made) | |||||
Automation
Optional Benefits

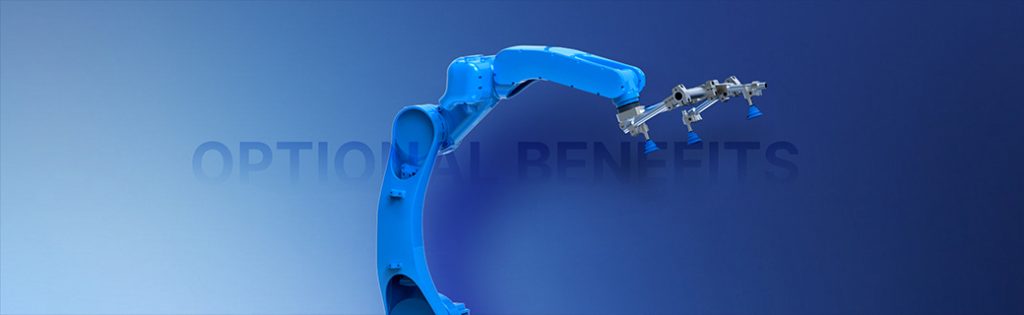

1. Servo robot arm for loading
Easy to operate, reduce labor intensity, just for the higher work efficiency
What is laser cutter and how does it work?
A laser cutter uses laser as heat source and can be classified as sheet cutting and tube cutting. This includes sheet laser cutter, tube laser cutter and sheet & tube combo, making it one of the most advanced metal processing equipment available today.
The laser cutter utilizes the high-density laser beam to convert laser energy into thermal energy, causing localized heating, melting or even vaporization of materials. The melted or vaporized material is then blown away by using gas flow or other methods to achieve cutting.
The power of a fiber laser directly impacts its cutting capabilities. Fiber lasers with different power levels are suitable for various material thicknesses and types. The following article provides an overview of the cutting capabilities for the main power ranges: Cutting Capacity and Speed of 1.5kW-80kW Fiber Lasers
