9-12m Heavy-duty Tube Laser Cutting Machine with Three Chucks ST Series
As a hi-end machine, ST series are suitable for cutting heavy and long tubes, and have a large body that requires big enough workshop. We tend to recommend it to heavy industries requiring large-sized equipment like engineering, heavy and construction machinery.
9000-12000 [mm] Tube length
20-500 [mm] Tube size
1200-2000 [kg] Tube weight
If you have more questions to ask us and get best quote, please contact us now directly via WhatsApp or Email:
Technical Parameters
Model | SF9035ST | SF12035ST | SF12050ST |
Laser Power (kW) | 6-20 | 6-20 | 6-20 |
Max Length of Tube (mm) | 9000 | 12000 | 12000 |
Scope of Tube Size (mm) | Φ20~360 □20*20~360*360 | Φ50~360 □50*50~360*360 | Φ50~500 □50*50~500*500 |
Max Weight of Tube (kg) | 1200 | 1200 | 2000 |
X/Y-axis Positioning Accuracy (mm/m) | ±0.05 | ±0.1/10000 | ±0.1/10000 |
X/Y-axis Repositioning Accuracy (mm) | ±0.03 | ±0.05 | ±0.05 |
Max No-load Speed (m/min) | 60 | 60 | 40 |
Max Rotating Speed of Chucks (r/min) | 60 | 60 | 40 |
Overall Dimensions (L*W*H, mm) | 18000*7000*4500 | 21500*7000*4500 | 22000*7200*4150 |
Power Supply | Three-phase 380V, 50Hz/60Hz (custom-made) | ||
Automation
Optional Benefits

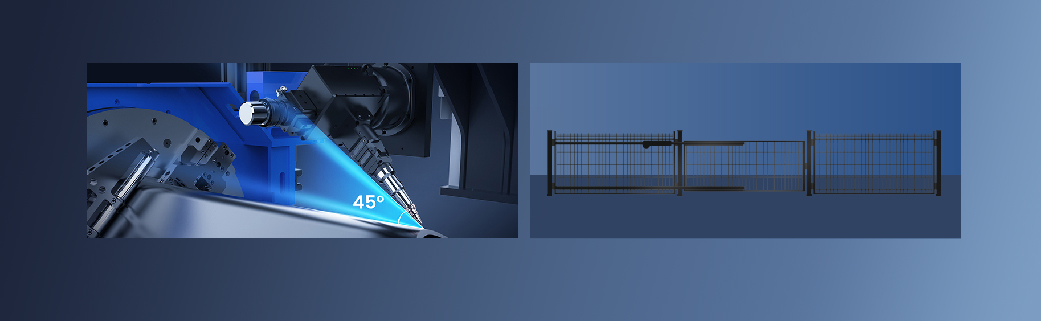

1. ±45° bevel cutting
The machine can cut tubes into ±45° bevel in one go. With less procedures, tube cutting efficiency will be greatly raised.
2. Safety fence
The machine may work with safety fence to separate cutting area. It is good for preventing man-machine injury or unexpected shutdown caused by workers’ intrusion by mistake.
What is laser cutter and how does it work?
A laser cutter uses laser as heat source and can be classified as sheet cutting and tube cutting. This includes sheet laser cutter, tube laser cutter and sheet & tube combo, making it one of the most advanced metal processing equipment available today.
The laser cutter utilizes the high-density laser beam to convert laser energy into thermal energy, causing localized heating, melting or even vaporization of materials. The melted or vaporized material is then blown away by using gas flow or other methods to achieve cutting.
The power of a fiber laser directly impacts its cutting capabilities. Fiber lasers with different power levels are suitable for various material thicknesses and types. The following article provides an overview of the cutting capabilities for the main power ranges: Cutting Capacity and Speed of 1.5kW-80kW Fiber Lasers
