Suction CNC Panel Bender Machine
The affordable panel bender has high cost performance. It uses vacuum suction cups to absorb sheets and bend thin (0.8-1.3mm) and small (length≤1500mm) metal sheet precisely together with 10-axis concurrent linkage. With less manual intervention, dependence on bending dies and labor force will fall off.
1250 [mm] Max bending width
170 [mm] Max bending height
0.2 [S/bend] Max bending speed
If you have more questions to ask us and get best quote, please contact us now directly via WhatsApp or Email:
Technical Parameters
| Main Parameters | Model | |
| BDC1200 | BDC1500 | |
| Max Bending Speed (S/bend) | 0.2 | 0.2 |
| Max Bending Length (mm) | 1200 | 1500 |
| Bending Height (mm) | 170 | 170 |
| Max Bending Thickness (mm) | 201 stainless steel: 0.8 Cold plate: 1.0 AL sheet: 1.3 |
201 stainless steel: 0.8 Cold plate: 1.0 AL sheet: 1.3 |
| Min Bending Thickness (mm) | 0.35 | 0.35 |
| Max Bending Size (L*W, mm) | 1200*1200 | 1500*1250 |
| Number of Axes | 10-axis concurrent linkage | 10-axis concurrent linkage |
| Rated Voltage (V) | 380 | 380 |
| Total Motor Power (KW) | 30 | 39 |
| Overall Dimensions (L*W*H, mm) | 3700*1800*2450 | 4000*2000*2550 |
| Gross Mass (T) | 9 | 12 |
Automation
Optional Benefits

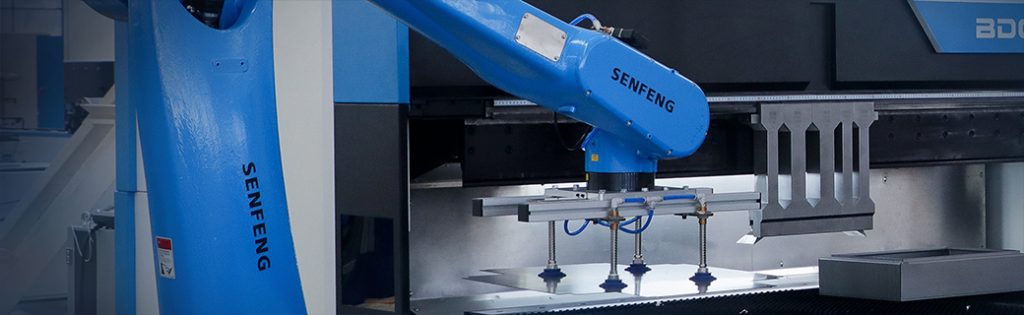

Reserve robot/truss expansion interface for loading & unloading, so as to make bending, loading & unloading fully automatic.
A press brake is a device that can bend thin sheet metals. It generates pressure through a hydraulic system, which is transmitted by upper and lower molds to achieve the desired bending shape. Depending on its drive mode, level of automation and structure, press brakes can be classified into manual, hydraulic and CNC press brakes.
Panel bender is a highly automated bending machine, representing the latest advancement in sheet metal bending. It can bend into various complex shapes such as right angle, arc, up and down, without the need for manual holding of workpiece or bending mold. One-time positioning is enough for multi-side bending. Its bending speed is about 3 times faster than traditional press brakes. Due to the fewest human intervention, the consistency among workpieces is much higher, and it is gradually replacing the tradition.
For the panel bender, workers only need to place workpieces on its worktable, then, the workpiece will be positioned by suction cup or press-down arm and bent automatically. A set of universal bending mold is enough, without frequent change or customization.
