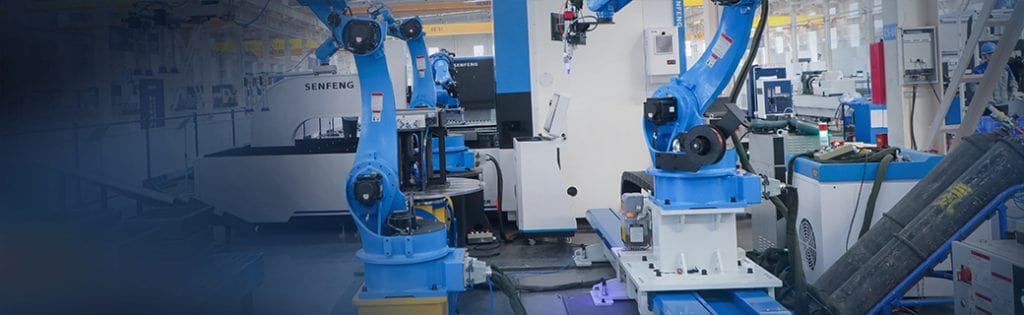

FANUC 3D Robotic Laser Welding Machine RW Series
Due to FANUC industrial robot, the machine has a high degree of automation and can weld various large workpieces of complex shapes automatically. With it, you may free your hands and get efficiency gains especially when mass production.
1 [set] FANUC 3D robot
1.6 [mm] Max diameter of filler wire
14 [mm] Max thickness of sheet
If you have more questions to ask us and get best quote, please contact us now directly via WhatsApp or Email:
Technical Parameters
| Main Parameters | Model | |||||
| SF1500RW | SF2000RW | SF3000RW | SF6000RW | SF12000RW | SF20000RW | |
| Laser Power (kW) | 1.5 | 2 | 3 | 6 | 12 | 20 |
| Laser Wavelength (nm) | 1080 (±10) | 1080 (±10) | 1080 (±10) | 1080 (±10) | 1080 (±10) | 1080 (±10) |
| Thickness of Welding Sheet (mm) | ≤3 | ≤4 | ≤6 | ≤7 | ≤10 | ≤14 |
| Diameter of Filler Wire (mm) | 0.8-1.6 | 0.8-1.6 | 0.8-1.6 | 0.8-1.6 | 0.8-1.6 | 0.8-1.6 |
| Weight of Welding Gun (kg) | ≤2.2 | ≤2.2 | ≤2.2 | ≤8 | ≤8 | ≤8 |
| Max Load of Robot (kg) | 25 | 25 | 25 | 25 | 25 | 25 |
| Fiber Length (m) | 10 | 10 | 20 | 20 | 20 | 20 |
| Robot Armspan (mm) | 1831 | 1831 | 1831 | 1831 | 1831 | 1831 |
| Overall Dimensions (L*W*H, mm) | 482.6*478*128 | 482.6*550*133 | 483*850*172 | 640*1000*700 | 480*950*780 | 750*1100*1070 |
| Power Supply | Three-phase 380V, 50/60HZ | |||||
Automation
Optional Benefits
1. Positioner
Various kinds of positioners available to get the optimal welding position and speed particularly for large or heavy workpiece
2. Visual welds tracking system
Compensate the deviation between demonstrating path and actual weld seams automatically
3. Voltage stabilizer
Adjust output voltage automatically, smooth out voltage fluctuation and fit for users in areas with unstable power supply
A laser welding machine is a device used for welding materials. It has a high power density and fast energy release, making its welding efficiency superior to other traditional welding patterns. Whether welding the same type or different materials, it is unnecessary to carry out secondary treatment. Its emergence has led to a large leap in welding technology.
Laser welding utilizes high-energy laser beam to locally heat small areas of materials. The energy from laser radiation quickly diffuses into the material through thermal conduction, melting the material to form a specific molten pool for welding purpose.
Currently, SENFENG can offer more than 10 kinds of different welding machines for customers worldwide. According to degree of automation, we have handheld and robot-assisted machines. Based on cooling mode, there are air-cooled and water-cooled types. With regard to heat source, laser welding and electric-arc welding are available now. Customers may make decision or apply for customization as needed.
