Robotic Arc Welding Machine For Sale RMW Series
Unlike laser welders that are limited to relatively thin metals, this machine has a wide range of applications including both thin (0.8mm) and thick (30mm) sheets. It works with a welding robot to weld various irregular workpieces in any spatial position, especially those that are difficult to mechanize. It is simply designed, easy to maintain, flexible to operate, and can adapt to various workplaces quickly.
0.8 [mm] Min thickness of sheet
30 [mm] Max thickness of sheet
-10~40 [℃] Work temperature
If you have more questions to ask us and get best quote, please contact us now directly via WhatsApp or Email:
Technical Parameters
Model | 350RMW | 500RMW | 500RMW-L | |
Thickness of Welding Sheet (mm) | 0.8-3 | 3-30 | 1.2 and above | |
Angle of Welding Gun | 45° gooseneck type | 45° gooseneck type | 45° gooseneck type | |
Cooling Mode of Welding Gun | Air Cooling | Water Cooling | Water Cooling | |
Robot Load (kg) | 6-10 | 6-10 | 6-10 | |
Robot’s Coverage Area (mm) | 1454-2012 | 1454-2012 | 1454-2012 | |
Robot’s Repositioning Accuracy (mm) | ±0.08 | ±0.08 | ±0.08 | |
Work Temperature | -10~40℃ | -10~40℃ | -10~40℃ | |
Welding Machine | AOTAI | MAG-350PRO | NBC-500RP PLUS | Pulse MIG-500RP PLUS |
| MEGMEET | Artsen Plus350DR | Artsen Plus500PR | Artsen Pro500QR |
Welding Materials | Carbon steel, stainless steel, low alloy steel, galvanized sheet | Carbon steel, stainless steel, low alloy steel, galvanized sheet | Carbon steel, stainless steel, AL and AL alloy | |
Overall Dimensions of Welding Machine (L*W*H, mm) | 1300*1300*1500 | 1300*1300*1500 | 1300*1300*1500 | |
Power Supply | Three-phase 380V, 50Hz/60Hz (custom-made) | |||
Automation
Optional Benefits

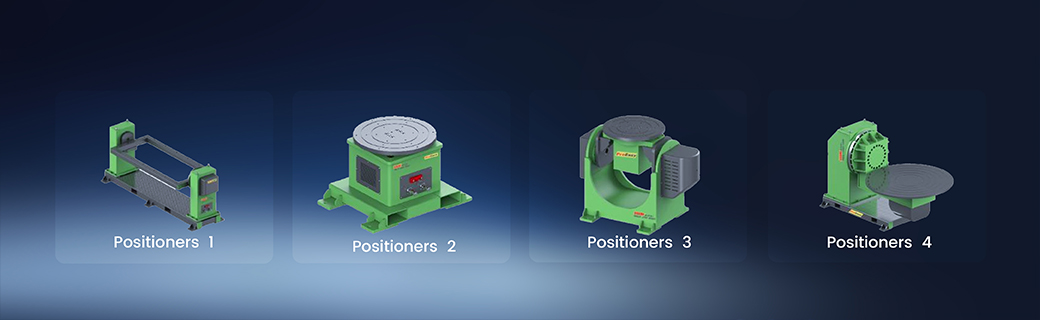

Positioners of different types
We offer 4 types of positioners to help workers to move or rotate heavy workpieces until they are transferred to welding area. In this way, the workers will witness ideal welding position and speed.
A laser welding machine is a device used for welding materials. It has a high power density and fast energy release, making its welding efficiency superior to other traditional welding patterns. Whether welding the same type or different materials, it is unnecessary to carry out secondary treatment. Its emergence has led to a large leap in welding technology.
Laser welding utilizes high-energy laser beam to locally heat small areas of materials. The energy from laser radiation quickly diffuses into the material through thermal conduction, melting the material to form a specific molten pool for welding purpose.
Currently, SENFENG can offer more than 10 kinds of different welding machines for customers worldwide. According to degree of automation, we have handheld and robot-assisted machines. Based on cooling mode, there are air-cooled and water-cooled types. With regard to heat source, laser welding and electric-arc welding are available now. Customers may make decision or apply for customization as needed.
