Handheld Fiber Laser Welding Machine HW Series
This is our new generation of laser welding machine. The reason why we rate it as cost-effective is that it combines welding, cutting and cleaning together at a lower price. Over 20 kinds of foreign languages are available to satisfy customers from different countries.
2 [mm] Max diameter of filler wire
7 [mm] Max thickness of sheet
≤0.7 [kg] Weight of welding gun
If you have more questions to ask us and get best quote, please contact us now directly via WhatsApp or Email:
Technical Parameters
Model | 1500HW | 2000HW | 3000HW |
Laser Power (kW) | 1.5 | 2 | 3 |
Laser Wavelength (nm) | 1080±5 | 1080±5 | 1080±5 |
Thickness of Welding Sheet (mm) | ≤4mm | ≤5mm | ≤7mm |
Diameter of Filler Wire (mm) | 0.8-1.6 | 0.8-1.6 | 0.8-2 |
Machine Cooling | Water cooling | Water cooling | Water cooling |
Weight of welding gun (kg) | ≤0.7 | ≤0.7 | ≤0.7 |
Length of Welding Gun Line (m) | 10 | 10 | 10 |
Overall Dimensions (L*W*H, mm) | 968*660*826mm | 968*660*826mm | 980*720*867mm |
Power Supply | Single-phase 220V, 50Hz/60Hz | Three-phase 380V, 50Hz/60Hz | |
Automation

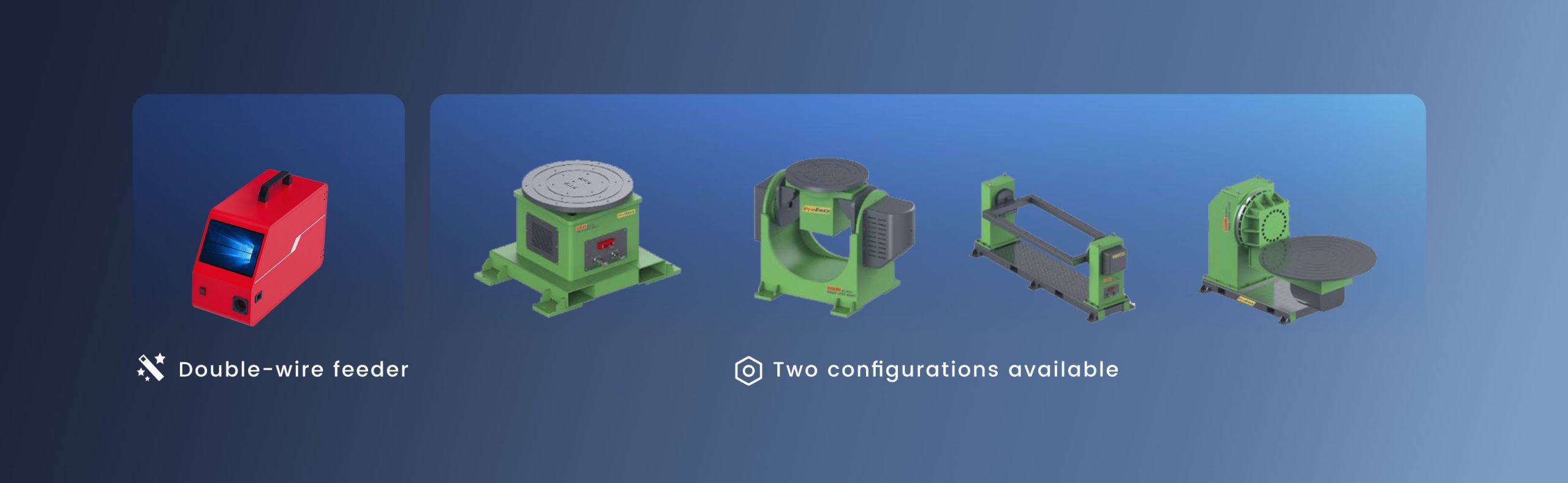

Optional Benefits
1. Double-wire feeder
Come with U-shaped wheel and graphite wire feeding pipe for feeding AL wire.
2. Positioner
While welding heavy workpiece, welding positioner is used for helping workers to move or rotate the workpiece to work area automatically. In this way, labor force will be greatly saved but with high efficiency.
A laser welding machine is a device used for welding materials. It has a high power density and fast energy release, making its welding efficiency superior to other traditional welding patterns. Whether welding the same type or different materials, it is unnecessary to carry out secondary treatment. Its emergence has led to a large leap in welding technology.
Laser welding utilizes high-energy laser beam to locally heat small areas of materials. The energy from laser radiation quickly diffuses into the material through thermal conduction, melting the material to form a specific molten pool for welding purpose.
Currently, SENFENG can offer more than 10 kinds of different welding machines for customers worldwide. According to degree of automation, we have handheld and robot-assisted machines. Based on cooling mode, there are air-cooled and water-cooled types. With regard to heat source, laser welding and electric-arc welding are available now. Customers may make decision or apply for customization as needed.
